OM150 Enhanced Focusing Coupled Triplet System
The OM150 is an enhanced focusing coupled triplet system comprising three OM50 lenses, delivering submicron performance with high beam transmission.
Features & Specifications
- Mounted on a precision micrometer controlled table for easy alignment: 5 µm vertical and horizontal, and 50 µradian rotational alignment
- With large demagnification parameters in both horizontal and vertical planes, submicron performance with high beam transmission (100 pA) is routine
- Using precision Hall effect probes to measure the magnetic field generated between adjacent poles for a particular beam focus, then this focus can be generated easily at a later stage by reproducing the lens magnetic fields
Related Products

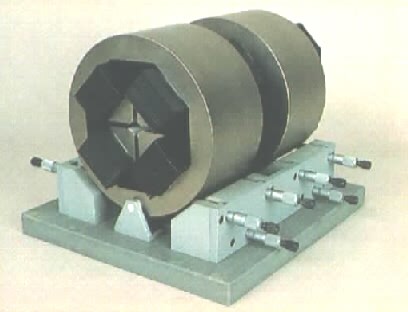

OM100
The OM100 is a basic doublet comprising two OM50 lenses mounted on a precision micrometer controlled table for easy alignment.
OM170
The OM170 is a monobloc triplet of pre-aligned OM52 lenses designed for vertical mounting. Its compact assembly uses precision ground spacers for accurate alignment.
